Load Cell IN-LWL 5 Ton C3 Alloy Steel Compression Silo weight force sensor IP67 for Automation Robot 2mv/v

Name: Load Cell INLWL 5 Ton C3 Alloy Steel Compression Silo weight force sensor IP67 for Automation Robot 2mvv
Brand: inntronic
Price: 1 USD

Brand Name : inntronic

Model Number : IN-LWL5t

Place of Origin : China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000pcs/month

Delivery Time : 15-30days

Type : Compression Silo Load Cell

Capacity : 5t

output : 2mv/v

Material : Alloy Steel

Application : Robot Manufacturing

Interchangeable brand : HBM

IP Protection standard : IP67

Accuracy grade : C3

Sensitivity : 1.0±0.1mv/v

size : 5t :diameter:208mm,height:79mm

Contact Now

IN-LWL5t Compression silo LOAD CELL for Automation Equipment Robot Manufacturing Material Testing Equipment

Load Cell Technical Parameter

Items	UNIT	TECHNICAL DATA
Rated capacities(Emax)	t	5
Sensitivity	mV/V	1.0±0.1
Total error	F.S	≥3%
Creep error(30min)	F.S	±0.1%
Zero balance	F.S	±1%
TCO	F.S/℃	±0.1% / 10
TC SPAN	F.S/℃	±0.1% / 10
Input impedance	Ω	400±20
Output impedance	Ω	352±3
Insulation impedance	MΩ	≥5000
Temperature range, operating	℃	-30~ +70
Maximum safe overload	F.S	150%
Ultimate overload	F.S	200%
Excitation, recommend	V	10-12V DC
Excitation, maximum	V	15V DC
Protection class		IP67
Construction		Alloy Steel
Wiring		Exc+(Red) Exc-(Black) Sig+(Green) Sig-(White)

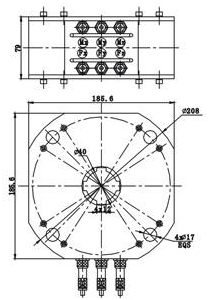

Load Cell Dimension
